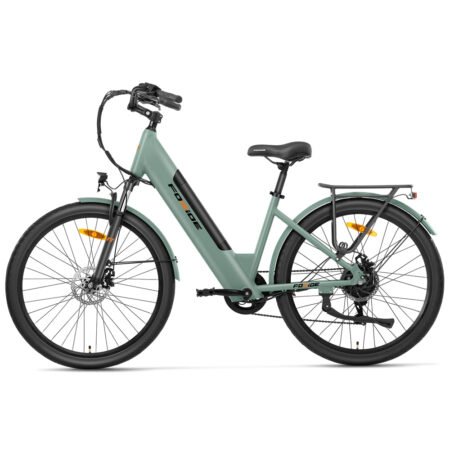

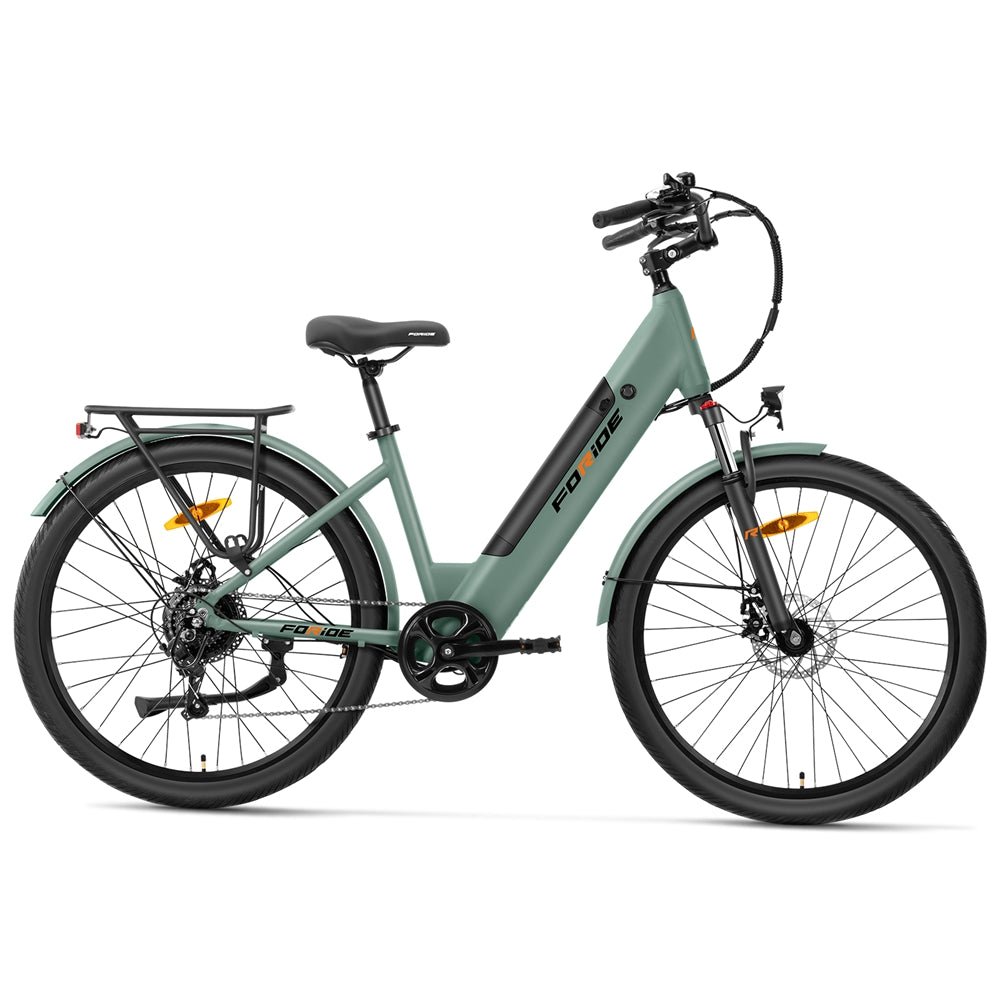

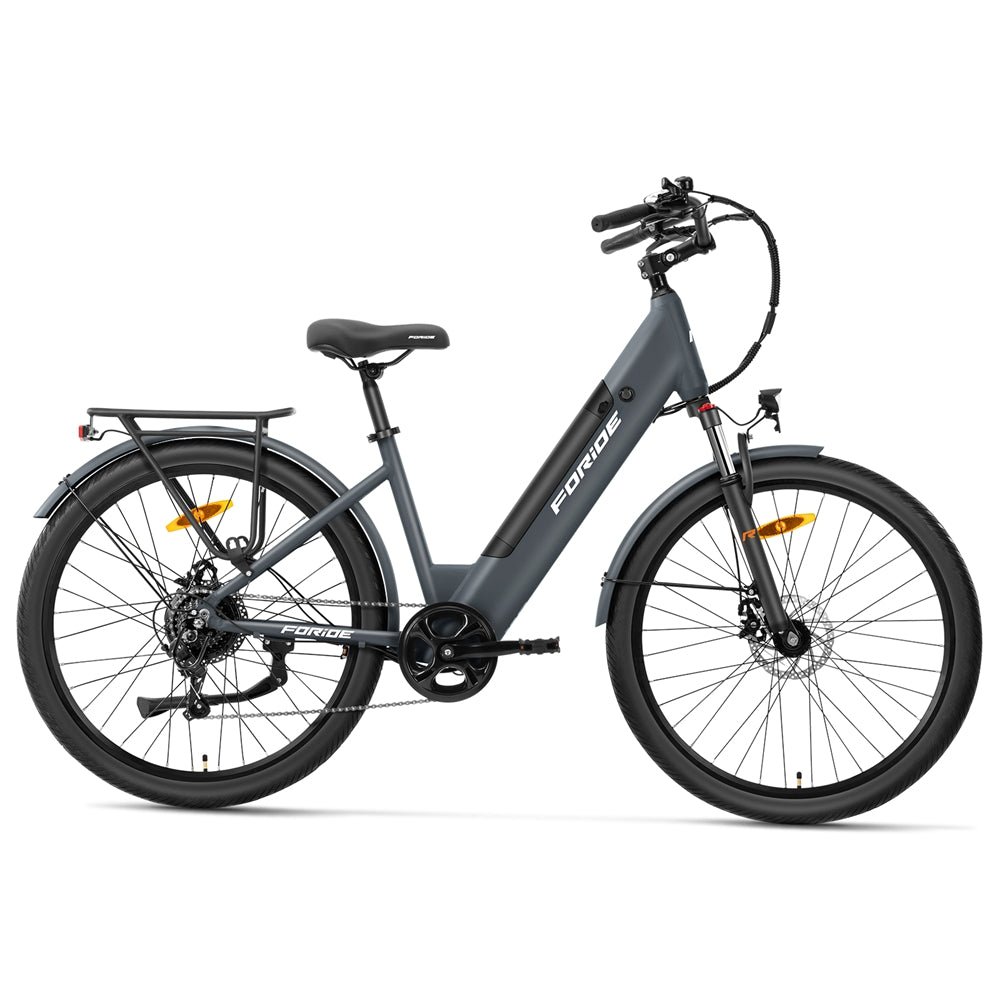

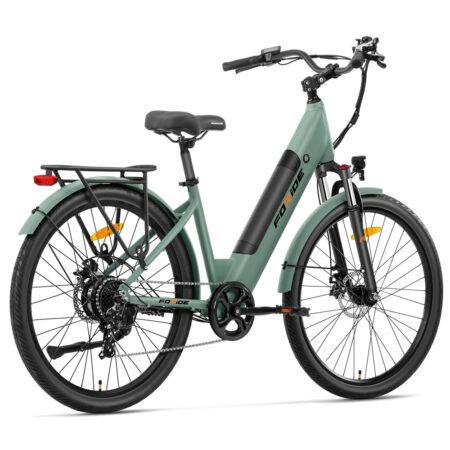

FORIDE ROAMER 1 Step-thru Electric Bike

Specs

• Net Weight

  26kg
• Unfolded Size

  1790x670x1120mm
• Size of Frame

  27.5″x17″
• Width of Handlebar

  660mm

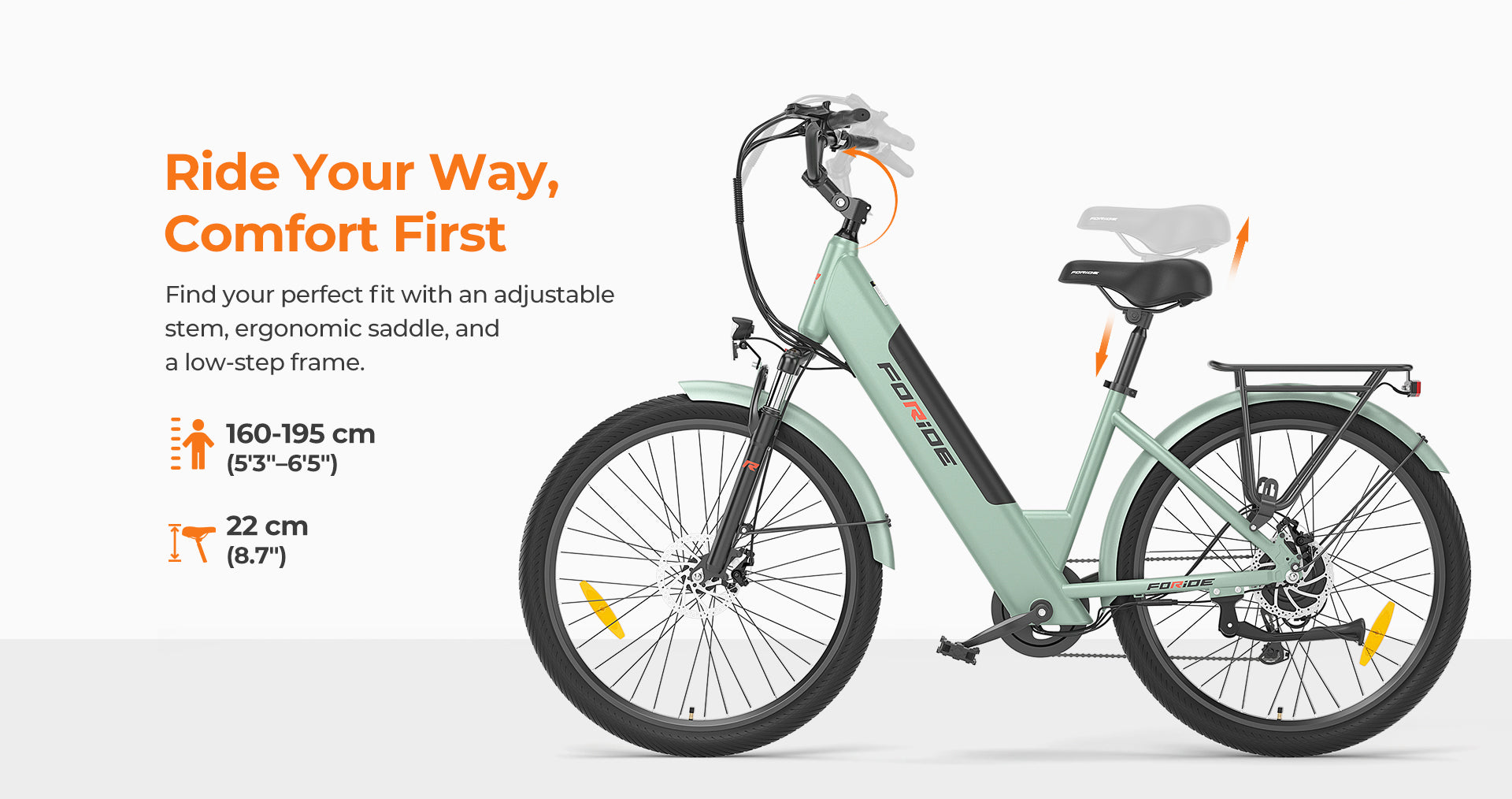

• Recommended Rider Height

  160-195cm(5’3″-6’5″)
• Max Load of Bike

  120kg
• Cut-off Speed

  25km/h

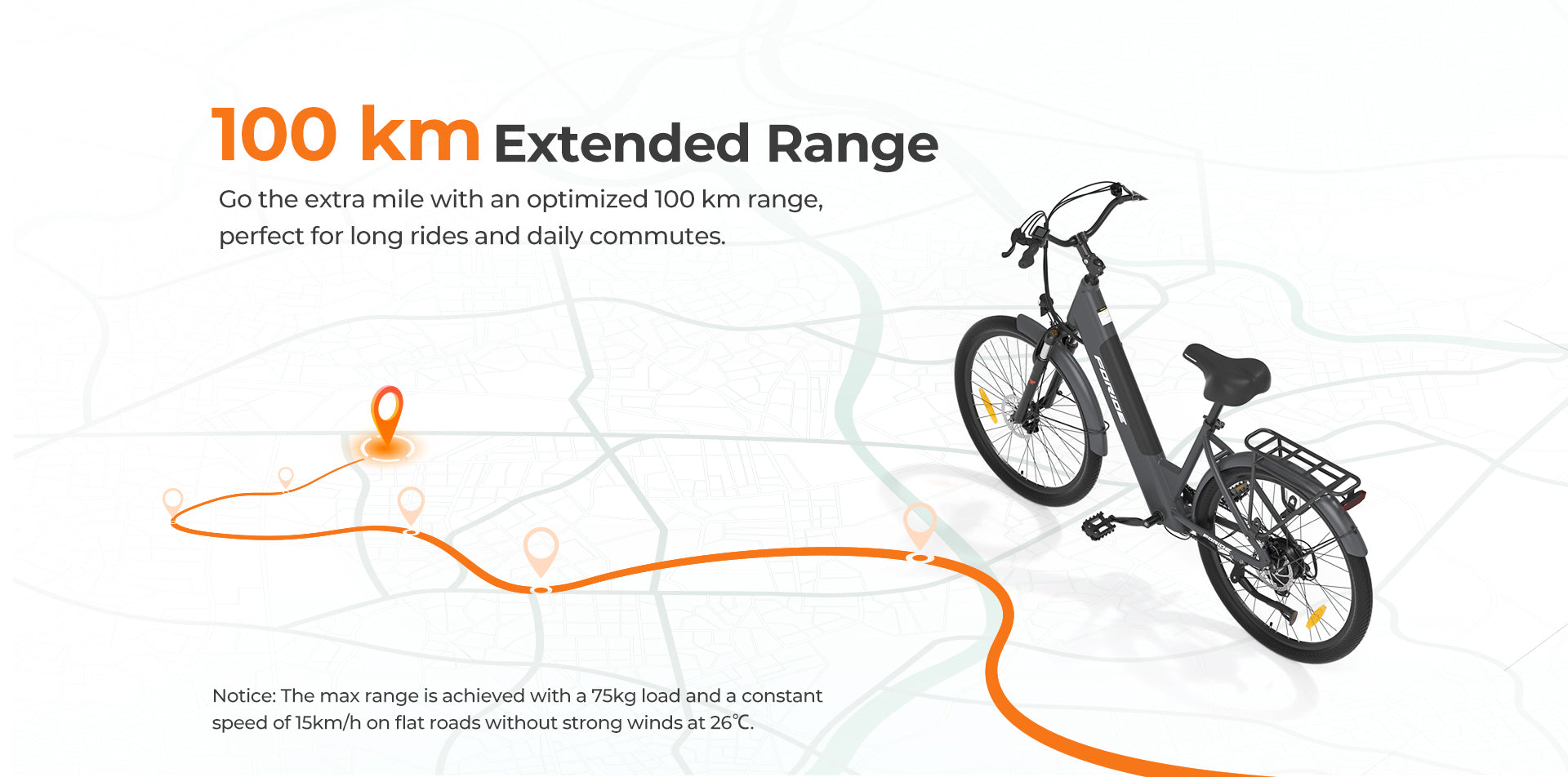

• Max Range

  100km (Assist Mode)
• Walk Mode

  6km/h
• PAS Levels

  12/15/18/21/25km/h(Level1-5)
• Waterproof Level

  IPX4
• Material

  Aluminium Alloy

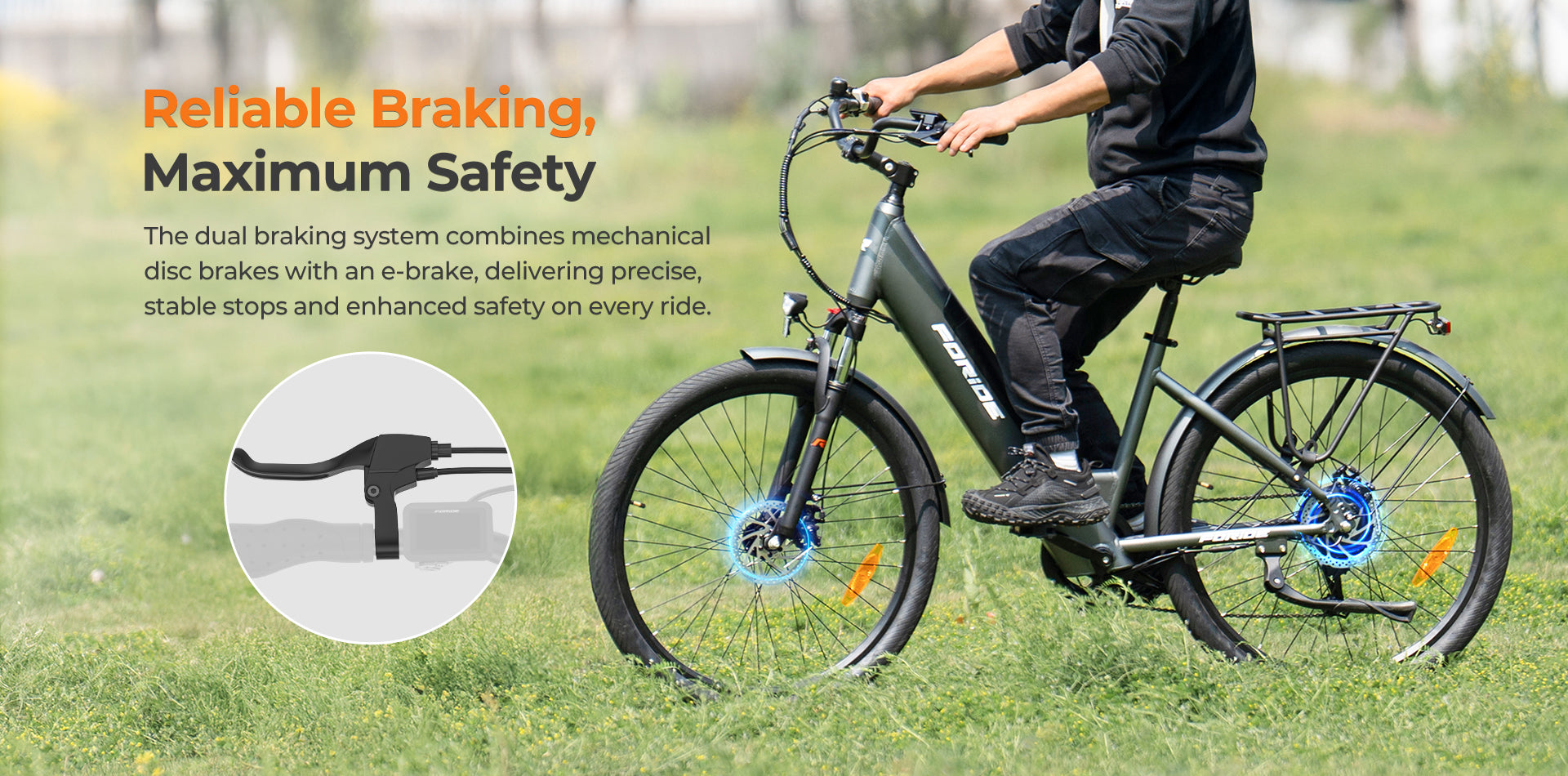

• Braking System

  Disc Brake & E-brake

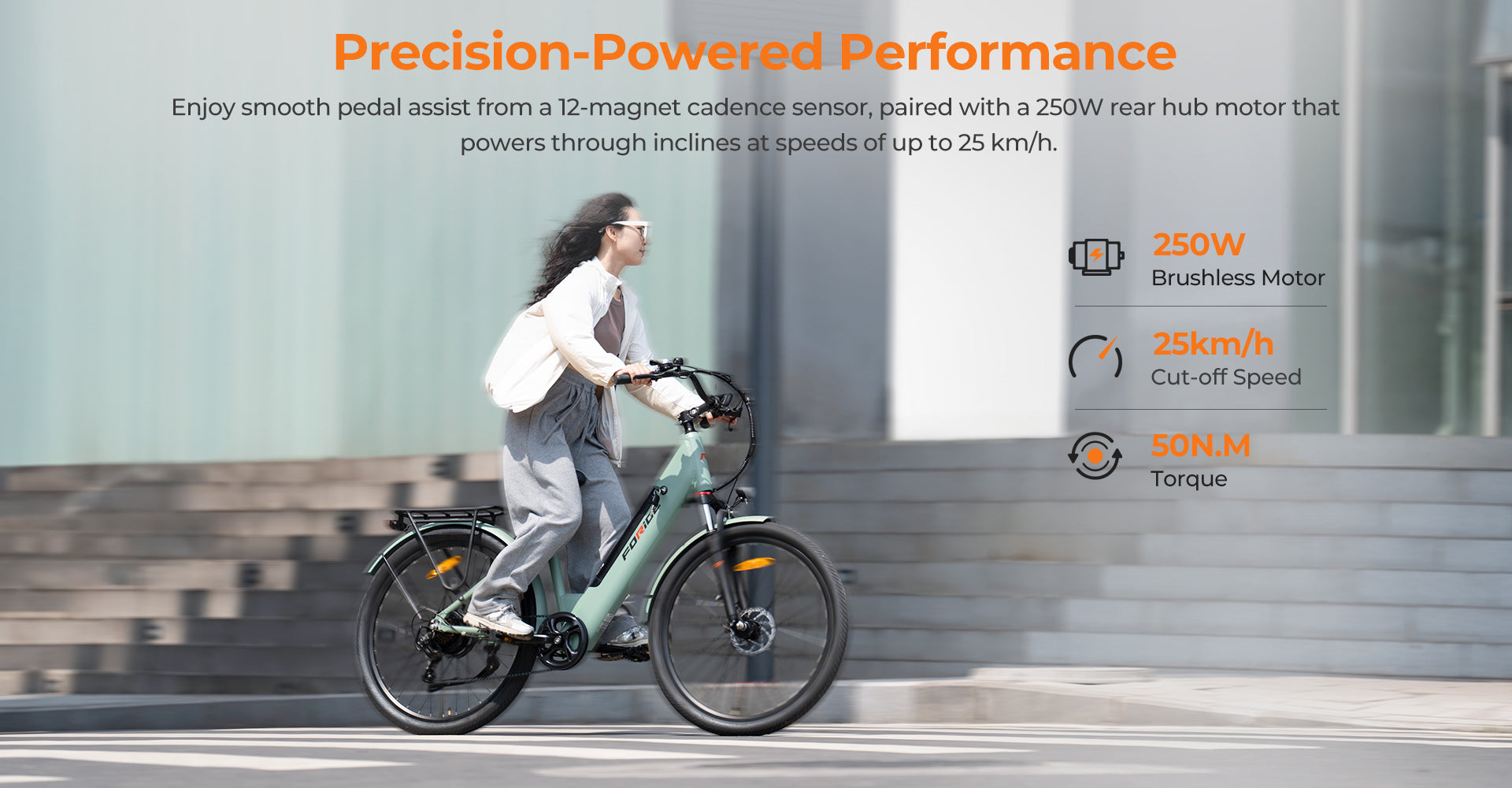

• Rated Power/Voltage

  250W/36V
• Max Output Torque

  50N.M

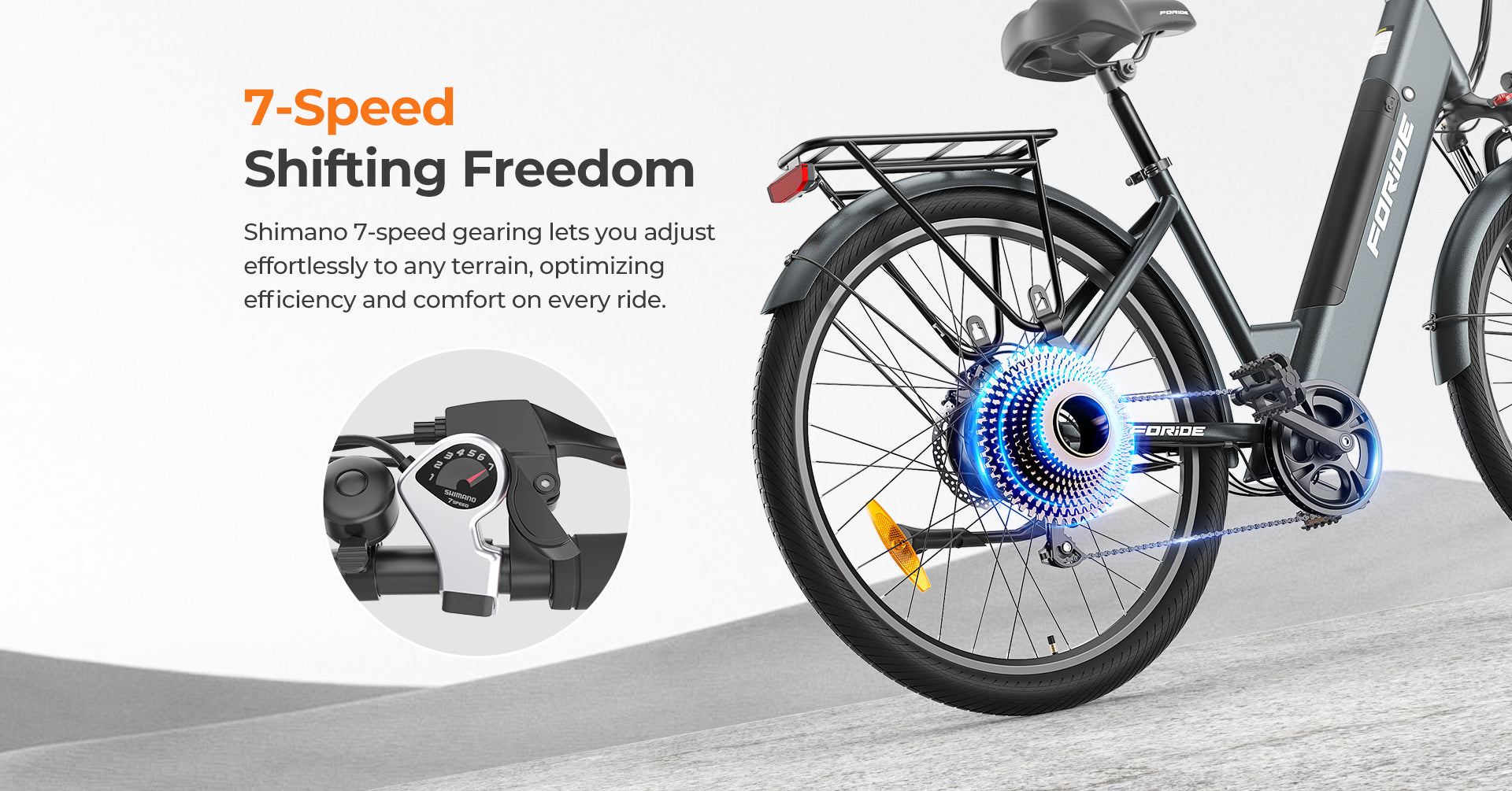

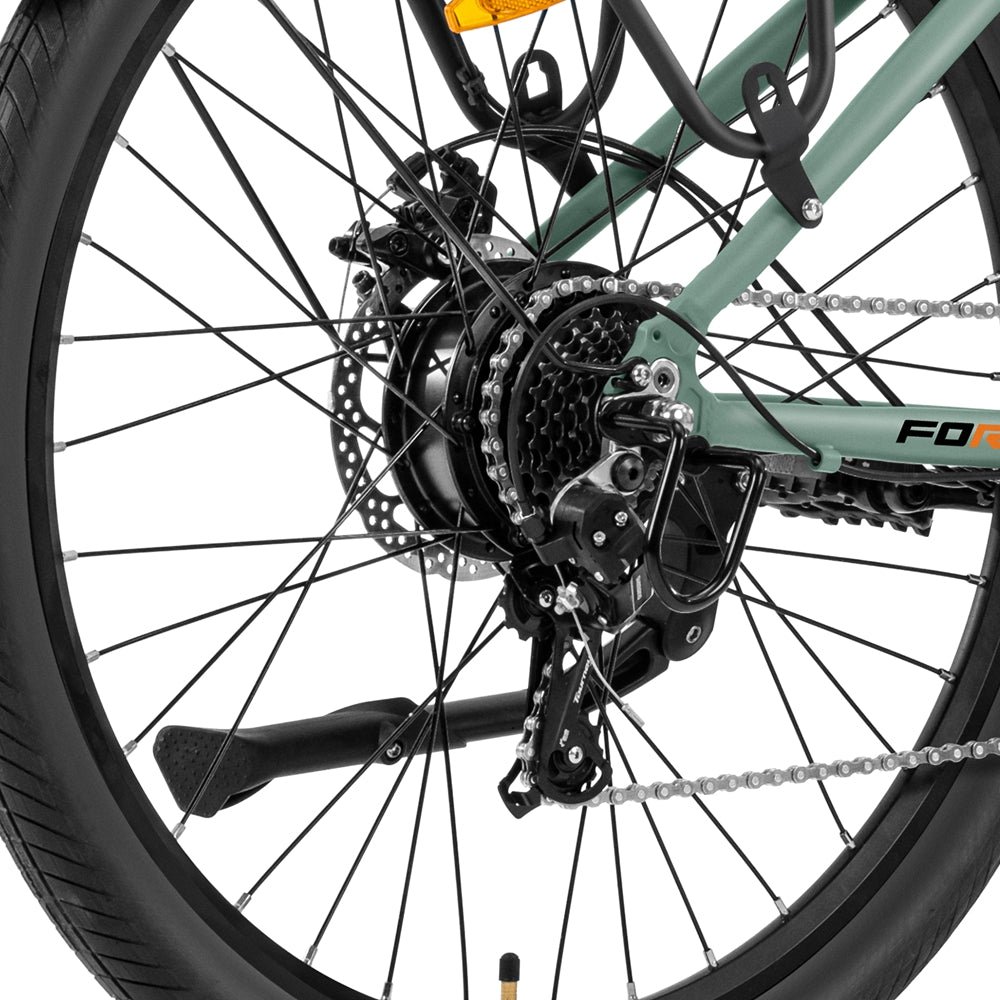

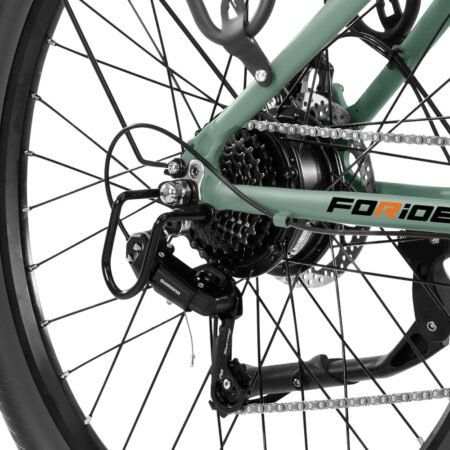

• Shifter Quantity

  7(Rear)

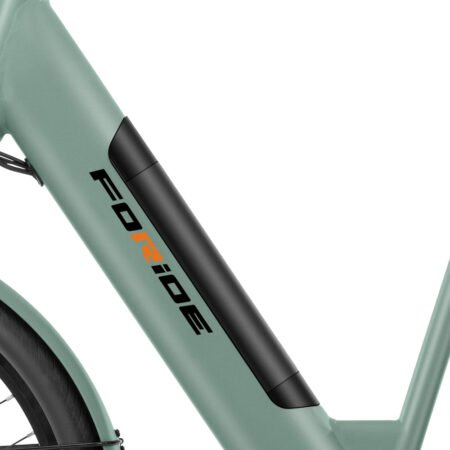

• Battery Capacity

  13Ah
• Charging Time

  6.5h
• Power Capacity

  468Wh

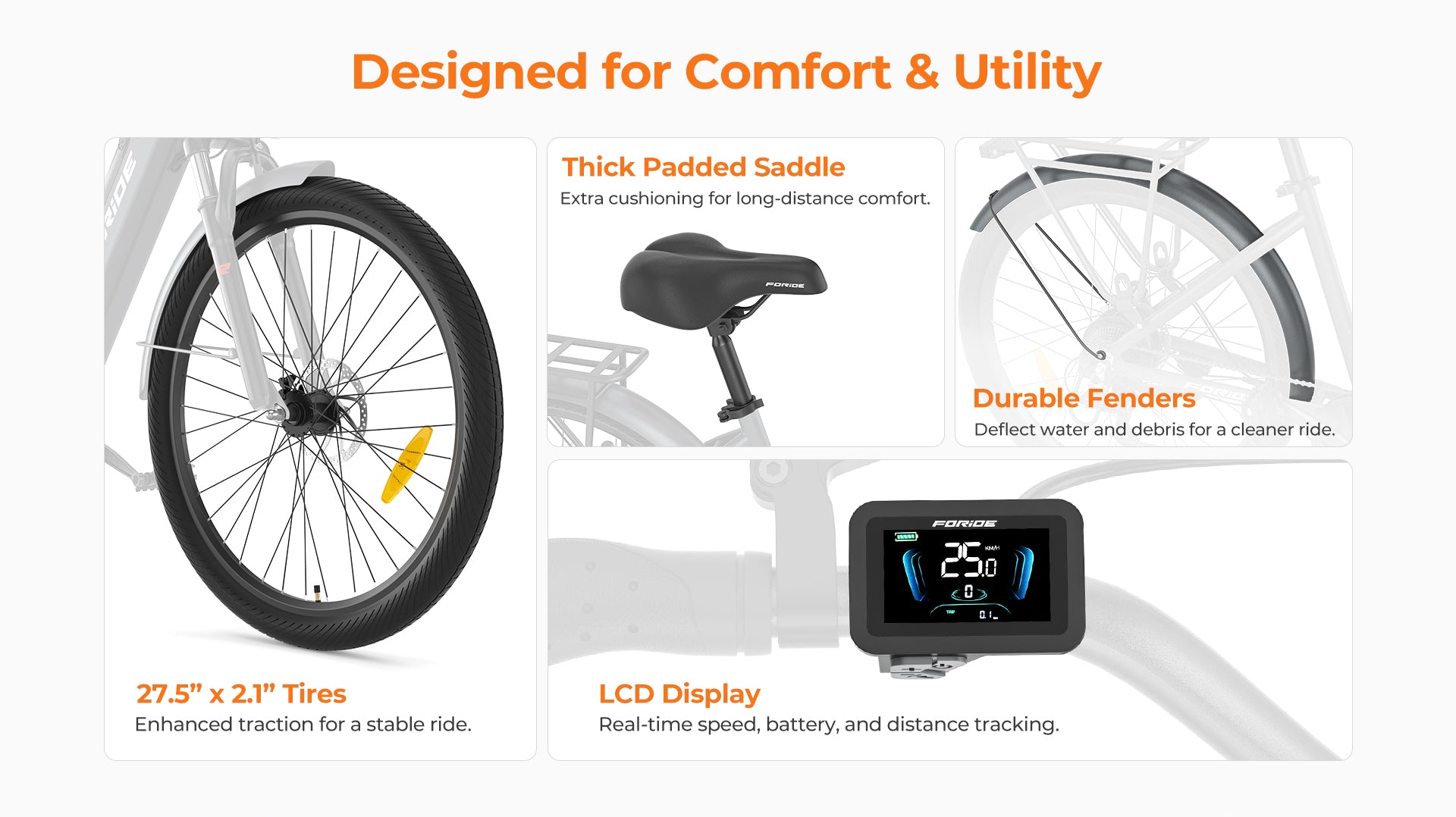

• Tire Size

  27.5″x2.1″

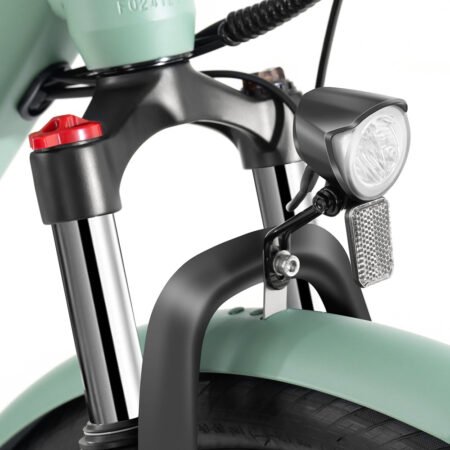

• Suspension

  Suspension with Lockout
• Suspension Travel

  80mm

Size

A Total Length	70.9″
B Handlebar Height	43.3″
C Wheelbase	43.3″
D Min Seat Height	32.3″
E Max Seat Height	41.3″
F Stand-over Height	28.7″
G Effective Top Tube	21.1″
H Wheel Size	27.5″
I Down Tube	28.7″
J Seat Tube	18″
K Angle b/w DT & ST	50.7°
L Handlebar Length	26″
M Reach	15.4″
N Stack	25.6″
O Head Tube Angle	70°
