750W*2
Powerful Motor

100-120 Kilometers
Extended Range

65Nm*2
Maximum Torque

48V 20AH
Samsung Battery

25 km/h
Maximum Speed

150 kilograms
Maximum Load

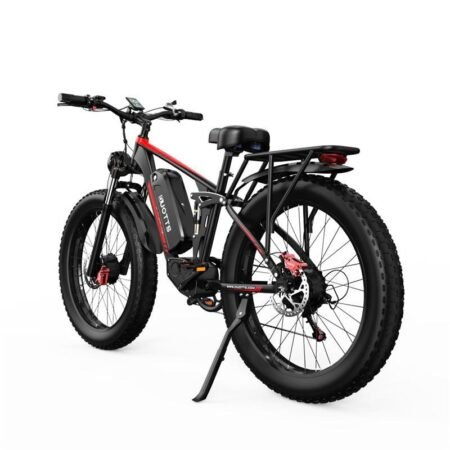

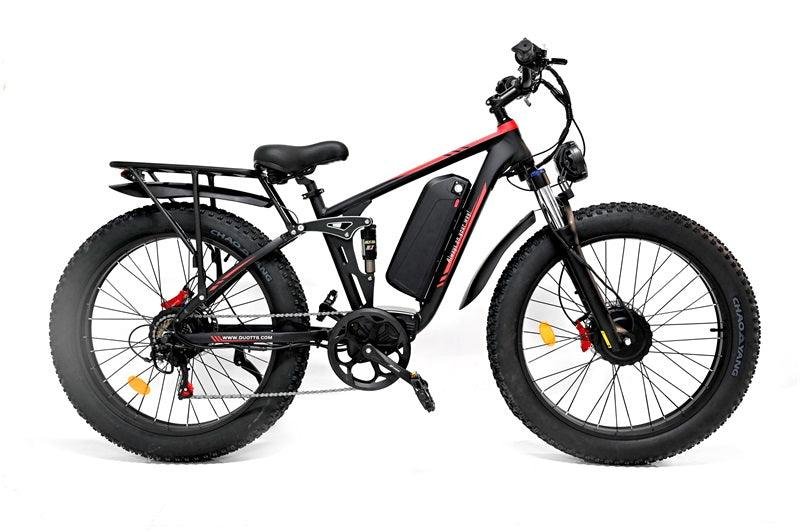

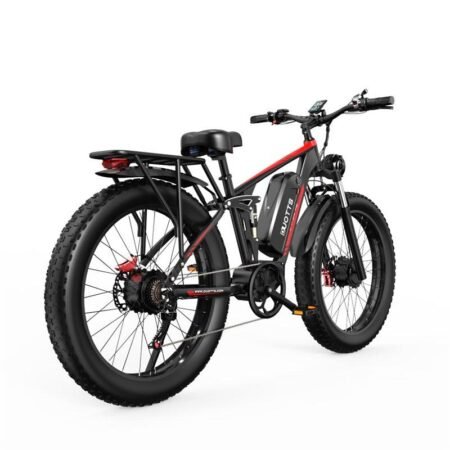

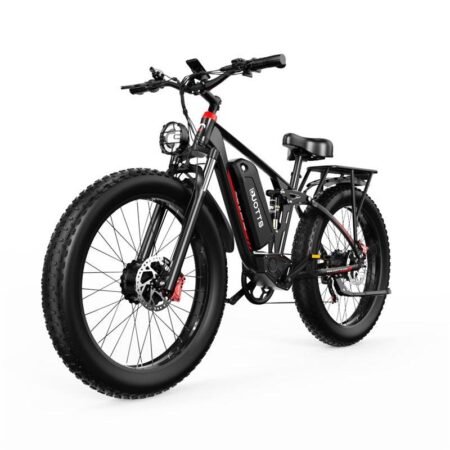

Checking out the S26 Electric Bike

The Trusted Partner for Experienced Riders. With a powerful 750-watt dual motor system and reliable Samsung 20AH battery, the S26 long-range electric bike offers versatile riding capabilities. This electric bike seamlessly switches between pure and pedal-assist modes, extending your range to 100-120 km with long-lasting battery performance.

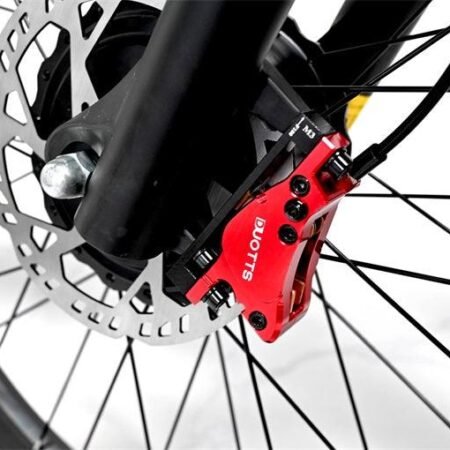

Safe hydraulic brakes

The advanced hydraulic disc brakes, equipped with a large 180mm diameter rotor, provide powerful and reliable braking force, significantly improving your safety and control during your ride. Whether you’re tackling steep slopes or responding to sudden stops, these brakes provide unrivaled confidence and security

Dual motors for improved power

Equipped with a 750W motor in both the front and rear, the S26 delivers 1500W of power in dual drive mode, resulting in increased speed and power. The ability to switch between single and dual drive modes with the push of a button allows riders to easily adapt to different terrain

Kenda 26*4.0-inch fat tires

The 26*4.0-inch fat tires add off-road capability to the S26. With their generous width, these tires improve traction and stability, ensuring safe riding even in powerful dual drive mode

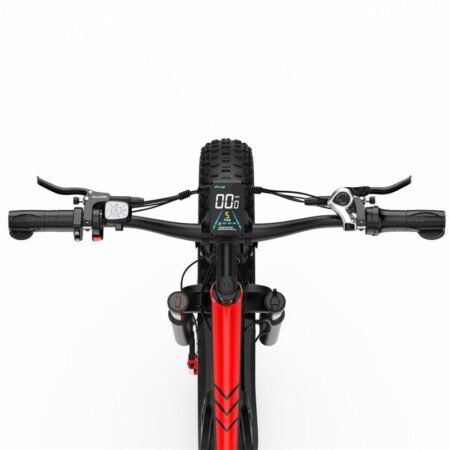

Multifunctional rider control panel

The S26 Electric Bike puts control in the hands of the rider with a semi-complex electric lever, Shimano gearing, a mobile phone charging port, and a toggle button to change driving modes. With a high-definition display screen, you can easily monitor the status of the vehicle and enjoy a safer, more convenient and more enjoyable ride

More, more, more

The S26 also has a rear cargo rack for added convenience and practicality, and its integrated rear light improves visibility and safety during night rides

Mobile phone charging port

Ride without worries, charge on the road! Our electric bike has a phone charging port in the handlebar area, allowing you to recharge your phone while riding. Whether it’s a long ride or a short trip, you don’t have to worry about running out of battery. Stay connected at all times and enjoy a smart and convenient riding experience.

Product details

Component geometry
Basic geometry
Electronic Specification

Motor48V 750W dual motors

Torque65 Nm

Battery48V 20Ah battery with Samsung cells

LoaderLuchtaire 54.6V 3A

Charging Time6–7 hours

Show3.2″ HD LCD display, Bluetooth enabled for the Duotts ​​App

Maximum RangeUp to 120 km in assist mode (actual performance varies depending on temperature, terrain, rider weight, etc.)

Maximum Speed25 km/h

Maximum Climbing Angle30°

Component Specification

FrameAluminum alloy frame

HandlingAluminum alloy handle, 73 cm

CrankAluminum alloy pulley, 170 mm

Transmission SystemShimano Tourney 1×7 speed derailleur system

ForcSingle-crown suspension fork with aluminium crown and steel stanchions, 80 mm travel, non-adjustable, with lockout

Rear Shock1000 lb spring shock absorber, non-adjustable, non-lockout

Front BrakeZOOM dual-piston hydraulic disc brake, 180 mm rotor

Rear BrakeCoscán diosca hiodrálach dé-loine ZOOM, rótar 180 mm

Front WheelKenda 26″ x 4.0″ tyre, 30 TPI, with inner tube

Rear WheelBonn Kenda 26″ x 4.0″, 30 TPI, le feadán istigh

Headlight70 LUX headlight, manually operated

TaillightIntegrated brake taillight

PedalAluminium alloy pedals

Gardaí láibePlastic mudguards

Rear RackSteel rear rack, max load 25 kg

General Spec

Bike Weight39.8 kg

CertificationCE certified

Product Size1930*1130*710 mm

Pedal Assist SystemSpeed sensor

Pedal Assist Level0-5 levels

Recommended Rider HeightSuitable for riders from 170 cm to 200 cm

Max Load Capacity150 kg

Ingress Protection RatingIPX4

Operating Temperature-10°C to 40°C

Package IncludeCharger, user manual, 16-in-1 tool, half-twist throttle, pedals, quick-release skewers (front), motor axle protectors, air pump, phone bag

Recommended Rider Height170–200 cm
Max Load Capacity150 kg
Bicycle Weight39.8kg
A. Seat Height (Maximum) 105 cmB. Seat Height (Minimum) 87 cmC. Rear Rack Height 85 cmD. Wheelbase 120 cmE. Rear Chainstay 54 cmF. Seat Tube 46 cmG. Top Tube 55 cmH. Down Tube 68 cmI. Front Fork 69 cmJ. Wheel Height 66 cmK. Bike Height 112 cmL. Bike Length 193 cm

Impact Assessment

Learn more about the excellent performance of Duotts long-range ebike S26 here.
